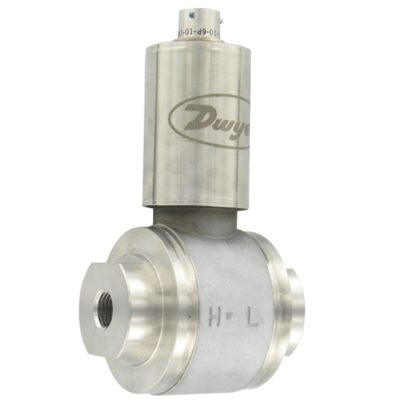

Series 655A 316 Wet/Wet Differential Pressure Transmitter

Product Applications

  • Pump differential pressure
  • Critical process monitoring
  • High accuracy/low differential pressure OEM applications

Series 655A Differential Pressure Transmitters are designed for high static/low DP applications designed especially for the End Users and OEM’s where extreme overpressure and high performance of 0.25% accuracy and stability are required at ranges down to 3″ w.c.

Every 655A Series is built using advanced manufacturing techniques to ensure symmetry between the HI and LO ports. Symmetry, along with automated welding procedures give these differential pressure transmitters excellent performance and reliability over time at high elevated line pressure. Each unit includes a 6-point NIST certificate of calibration which demonstrates the unit’s high level of performance.

The 655A Series transmitter pressure ports that are all welded 316 SS with an O-Ring free design making it ideal for high cyclical applications, capillary filled systems, or applications where a guaranteed leak free system is needed.
