Series CBAS Belt Alignment Switch

Product Application

  • Conventional Belt Conveyors
  • Ship Loading/Unloading Systems
  • Stacker/Reclaim Conveyors
  • Apron Feeder Conveyors
  • Tripper or Shuttle Conveyors
  • Crane, Shovel, or Drag Line Limit Switch
  • Heavy Duty Limit Switch

Categories: ,

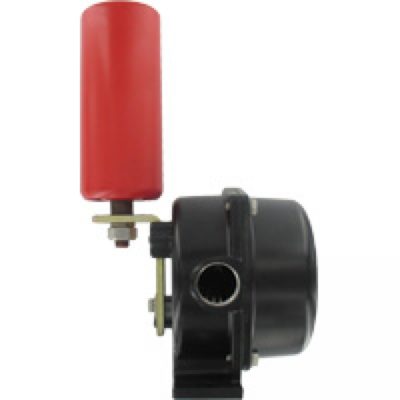

The Series CBAS is a rugged and reliable conveyor belt alignment switch. The compact die cast aluminum housing is designed for easy installation. The switch cover allows for simple access to wiring terminals and CAM adjustments. Belt alignment switches are typically used in pairs with one switch on each side of the conveyor belt mounted near the first and/or last pulley of a conveyor. Each series CBAS is equipped with two micro switches, allowing one actuation angle for small belt deviations and a second actuation angle for extreme belt deviations. The actuation angles are factory set at 20 degrees and 35 degrees, each actuation angle can be easily adjusted in the field to fit any application.

Series CBAS Belt Alignment Switch
