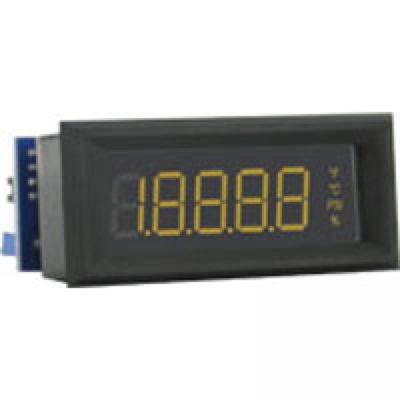

Series DPML LCD Digital Panel Meter
Product Applications
-
Used to display process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters.
The Series DPML LCD Digital Panel Meter offers a large 4-1/2 digit LCD display with a choice of red, amber or green segments for easy viewing at a distance. The meter accepts loop powered 4 to 20 mA DC input, 0 to 5 VDC, or 0 to 10 VDC voltage input. Standard features include field-selectable engineering units and decimal point positions. A 24 VDC power supply is required for the operation of the back light.
