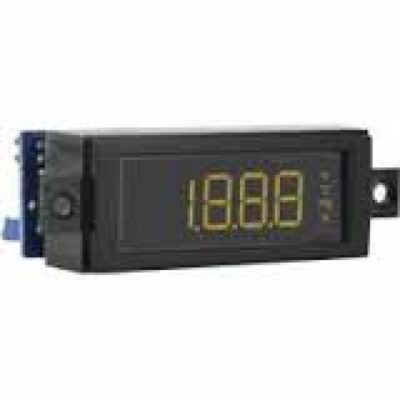

Series DPMW LCD Digital Panel Meter

Product Applications

  • Used to display process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters.

Categories: ,

The Series DPMW LCD Digital Panel Meter is designed with a 3-1/2 digit, high contrast LCD display. The colored segments are available in red, amber, or green – ideal for viewing at a distance. The Series DPMW features user selectable engineering units, selectable decimal point position and adjustable zero and span. The meter accepts a 4 to 20 mA input signal for pressure, level, flow, and temperature transmitter. A 24 VDC power supply is required to illuminate the colored segments. The Series DPMW can be quickly installed in a window cutout.
